batch-render-group

上一页渲染管线下一页inverse-z

最后更新于8个月前

这有帮助吗?

Reference

Concept

BatchRendererGroup (or BRG) is an API that efficiently generates draw commands from C# and produces GPU-instancing draw calls.

相对于 DrawMeshInstanced 好处

  • DrawMeshInstanced 需要托管内存, 传入 TRS 数组

  • DrawMeshInstanced 需要自定义着色器

  • DrawMeshInstanced 每次绘制需要上传 GPU

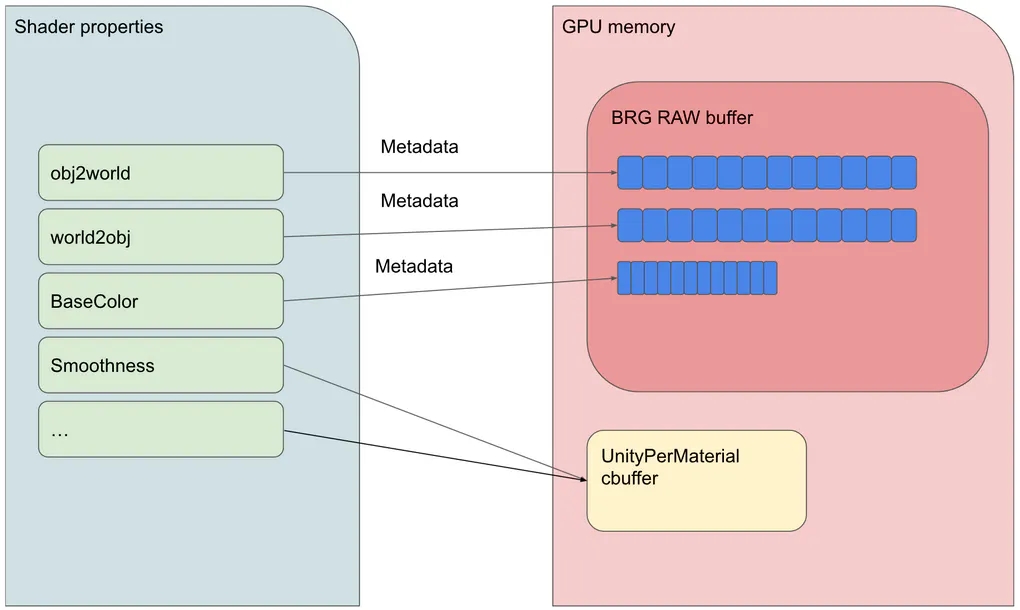

BRG shader data model

  • the standard constant buffer (UnityPerMaterial)

  • custom, large GPU buffer (BRG raw buffer)

    • Shader Storage Buffer Object (SSBO, or byte address buffer)

    • The default BRG data layout is the structure of arrays (SoA) type

Properties per instance – or not

BRG metadata

  • Bits 0–30 define the offset of the property within the BRG raw buffer,

  • and bit 31 tells whether the property value is the same for all instances or the offset is the beginning of an array, with one value per instance.

两种 Buffer

BRG culling and visibility indices

BRG matrix format and buffer

SoA layout

Animating floor cells

  • allocate a similar buffer in system memory (CPU can process data at full speed in system memory).

  • Let’s call this second buffer a “shadow copy” of the GPU memory

  • When animation is done, we upload the shadow copy buffer to the GPU using the GraphicsBuffer.SetData API.

defined as follows

  1. “unity_ObjectToWorld” property is an array starting at offset 0 of the BRG raw buffer

  2. “unity_WorldToObject” property is an array starting at offset 153,600

  3. “_BaseColor” property is an array, starting at offset 307,200

The devil’s in the details: GLES exception

most GLES 3.0 devices can’t access SSBO during the vertex stage (i.e., the GL_MAX_VERTEX_SHADER_STORAGE_BLOCKS value is 0).

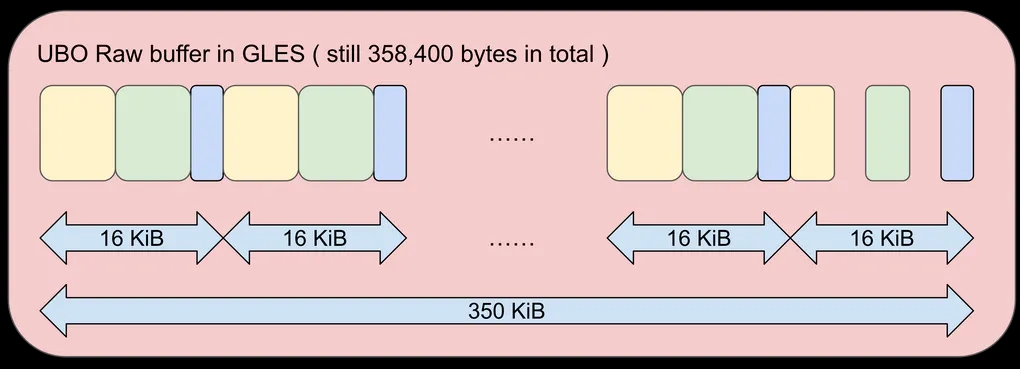

在 OpenGL 上用 UBO 替代 SSBO

A constant buffer can be any size, but only a small part of it (a window) is visible at any given time when the shader is running. The window size depends on the hardware and driver, but a widely accepted value is 16 KiB.

BatchRendererGroup.GetConstantBufferMaxWindowSize() API to get the correct BRG window size.

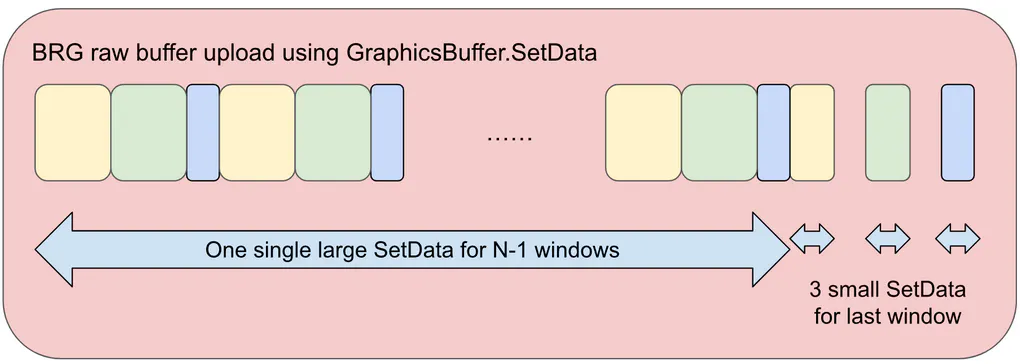

Uploading data

Main BRG user callback

  1. To generate all draw commands into the output BatchCullingOut struct

  2. To use (or not) information provided in the BatchCullingContext read-only struct within your own culling code

Draw commands generation

A BRG draw command is almost a GPU DrawInstanced call.

BatchRendererGroup sample: Achieve high frame rate even on budget devices
Unity-Technologies/brg-shooter: Unity blog-post sample showing BatchRendererGroup and Burst/JobSystem. Focus is high performance even on budget mobile devices. Unity 2022.3.5 or above required
